Meister Scale Engine Options

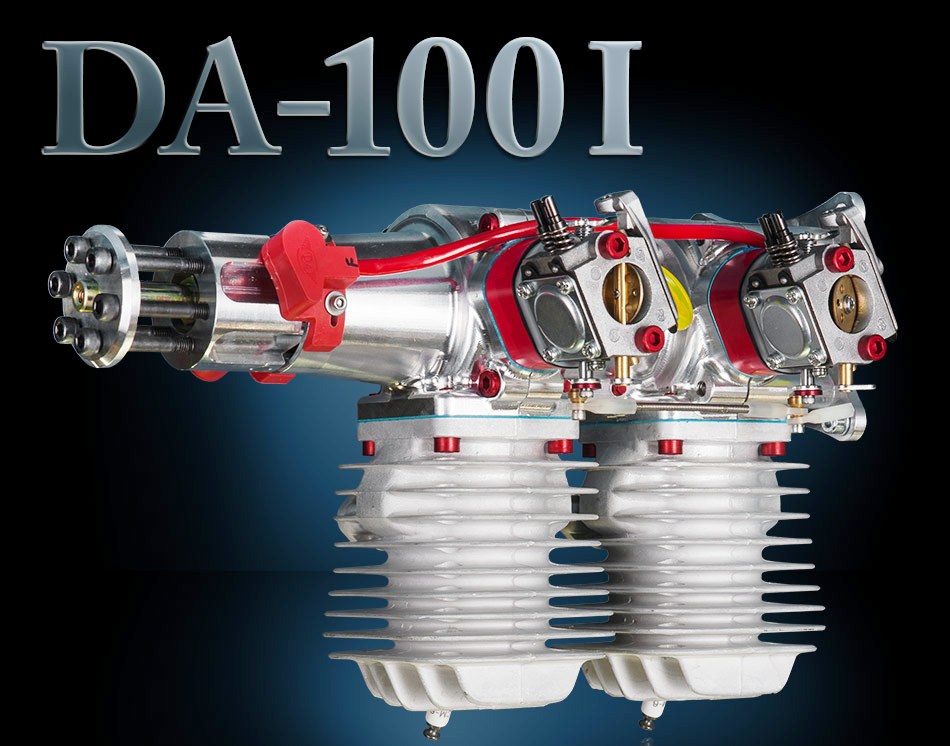

DA-100 Inline Engine


  • Computer simulation designed high performance engine with very high torque output
  • Sensational low idle
  • Very spontaneous throttle response due to the small crankcase volume
  • Crankcase CNC machined from high tensile strenght 7075 aircraft aluminium alloy
  • Long conrod with gudgeon pin located very near to piston crown to reduce side loads
  • Unbelievably smooth running just like the DA-200 4-cylinder boxer
  • Two Walbro carburettors and new design 4 leaf reed valves

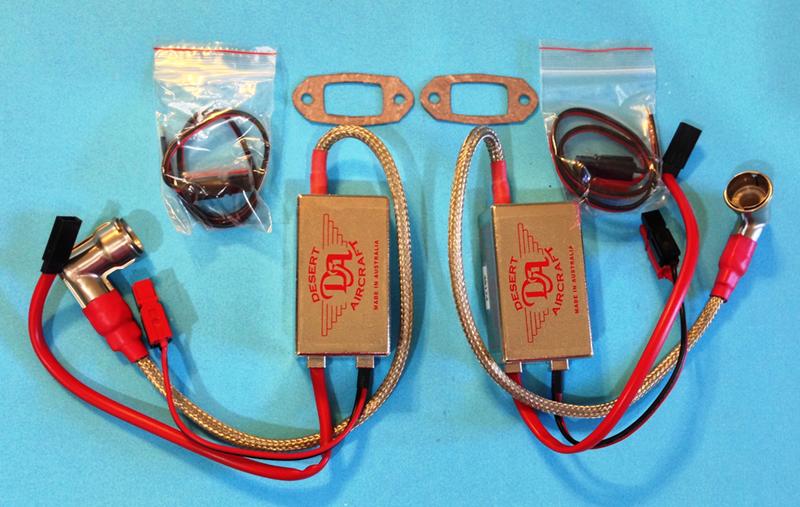

  • Battery ignition with automatic advance and retard
  • DA engines are designed using the latest tools and techniques,including 3D CAD and Stereo Lithography

Specs:

Type: 2-Stroke
Displacement: 100cc
Bore: 42.6 mm
Stroke: 35.0 mm
Weight: 3230 g
Including Ignitions: 3450 g
RPM Range: 800 - 6700 1/min
Max RPM: 8500 1/min
Muffler Included: No

Price: $1500.00*

Menz 2-blade: 26x12", 27x10", 28x10"
Super Silence 2-blade carbon: 28x12", 27x12", 26x14"
Super Silence 3-blade carbon: 26x12"
DA-100 Inline Muffler:
$150.00

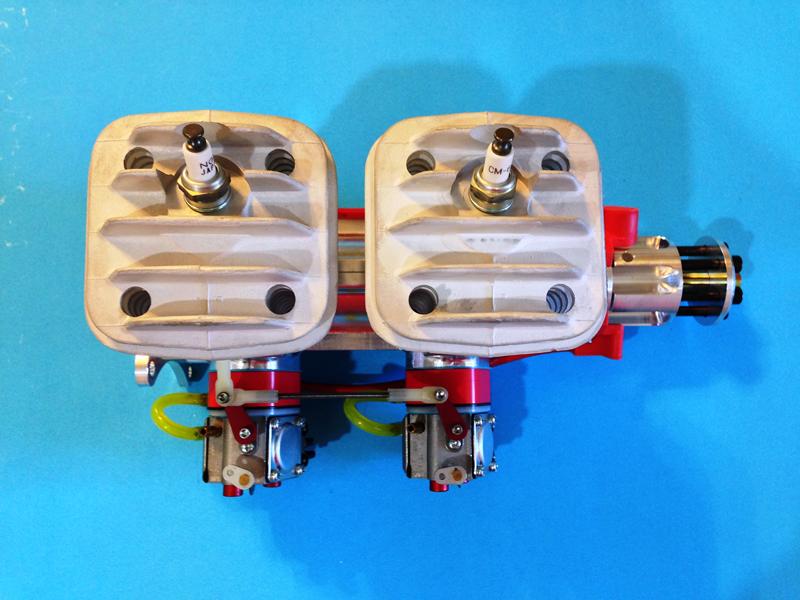

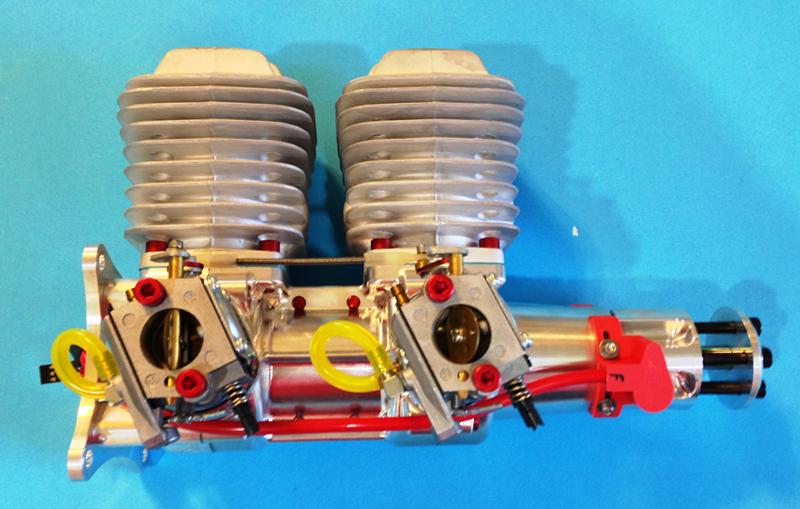

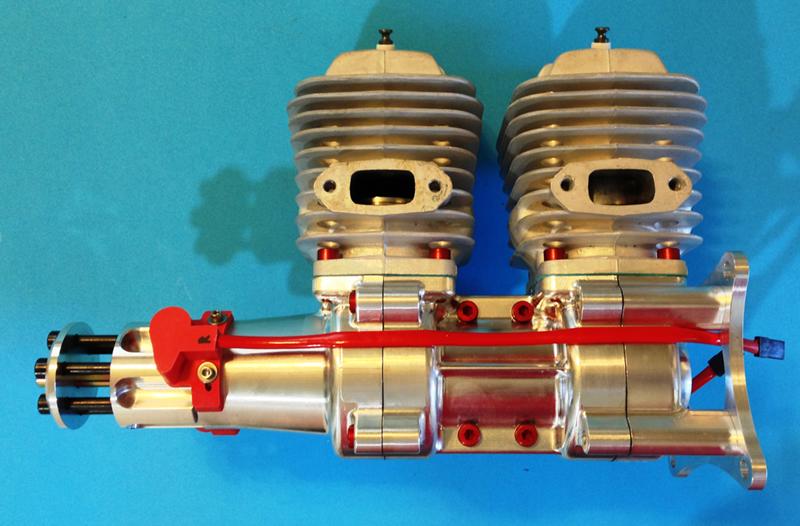

See dimension views   Photo 1   Photo 2   Photo 3   Photo 4   In-Cowl Muffler   Inline Muffler

GT-80 Engine

For use with the Meister Scale Corsair, P-47, FW-190A, FW-190-D9, & Zero


The 80 features an increased bore diameter, increasing displacement to 80cc and boosting horsepower to 5.5. Dual rings on each piston give a superior seal, while the self-contained Quartz ignition gives a reliable spark without the hassles of charging ignition batteries. Starting is a breeze with the rear-mounted spring starter; just wind the prop clockwise one turn then release. And this simultaneous firing twin runs so silky smooth from idle to full power, you can forget about vibration-related airframe and electronic problems.

Specs:

Type: 2-Stroke
Displacement: 4.88 cu in (80.0 cc)
Bore: 1.60 in (40.50 mm)
Stroke: 1.22 in (31.00 mm)
Cylinders: Twin - Chrome Plated
Total Weight: 123 oz
Engine (Only) Weight: 108 oz
Muffler Weight: 15 oz
Crankshaft Threads: M10 x 1.25
Benchmark Prop: 24 x 10 APC @ 7,400
Prop Range: 22x12 - 24x10
RPM Range: 1,800 - 10,000
Fuel: Gas/Oil Mix
Mounting Dimensions: 192 x 257 x 205 mm
Muffler Type: Can
Cylinder Type: Ring
Carb Type: Walbro WJ-64
Crank Type: Ball Bearing

List: $1,399.99 - Map $899.00


ZP-80 Gas Twin Engine

For use with the Meister Scale Corsair, P-47, FW-190A, FW-190-D9, & Zero




Easy starts. Incredible fuel efficiency. Legendary reliability of ZenoahT engines. You'll get it all, plus power to spare, with ZP electronic ignition engines that share many of the core components used in world-famous Zenoah magneto engines. And, like the magneto engines, they're built for modelers who value dependability and ease of use above all else. What sets ZP engines apart is their sophisticated electronic ignition system that saves weight and makes hand starts easy. The system can be powered with everything from 4.8V Ni-Cd or Ni-MH packs to 2S 7.4V Li-Pos. No power regulators are required, and the current draw is so low, you'll be able to use smaller capacity battery packs and save weight or go with bigger packs and enjoy more flights between charges. Because the electronic ignition system eliminates the need for magnetos or a PTO shaft, ZP engines are significantly lighter as well. This reduced weight coupled with their impressive torque numbers make it possible to achieve thrilling power-to-weight performance.

Key Features:

  • 4.8-7.4V LiPo-ready electronic ignition with variable timing, no regulator needed
  • All up weight savings of 23 oz compared to a magneto style engine
  • The proven and efficient ignition system only draws 450mAh, which allows for a smaller battery and longer flight times between charges
  • Increased power band compared to magneto engines
  • Aluminum carburetor arms for choke and throttle allow for easy servo hookup
  • Custom-machined prop drives with grey anodizing
  • Lightweight mufflers included and purpose-built for quieter operation

Specs:

Type: 2-Stroke
Benchmark Prop: 24 x 10 Mejzlik @ 6,800 rpm
Bore: 1.60 in (40.5mm)
Crankshaft Threads: 4 Bolt hub (M5 x 1 threads)
Cylinder Type: Ringed, Nikasil-plated
Cylinders: Twin
Displacement: 4.88 cu. in. (80.00 cc)
Engine (Only) Weight: 5.31 lb (2.4 kg)
Fuel: 32:1 Gas/Oil Mix
Fuel Type: Gas
HP: 7.4 hp @ 7500 rpm
Muffler Threads: M4 x 12mm (4)
Muffler Type: Custom Can mufflers (included)
Muffler Weight: 5 oz (142 g) ea (x2)
Prop Range: 22 x 12 - 24 x 10
RPM Range: 1,800 - 10,000 rpm
Stroke: 1.22 in (31.0mm)
Total Weight: 6.25 lb (2.8 kg)

List: $949.00

DA-85 Engine

For use with the Meister Scale 102" ME109, Corsair, P-47, FW-190A, & Zero


  • The DA-85 features Desert Aircraft auto advance electronic ignition
  • 4 Petal Reed valve
  • CNC milled, 7075 aluminum alloy crankcase

Specs:

Type: 2-Stroke
Part No.: DA 85
Displacement: 5.24ci (86cc)
Weight: 4.3 lbs
Length: 5.9 in (150mm)
Muffler: No

Price: $795.00*

2 Blade Prop 3 Blade Prop
26x10
26x12
24x10
24x12
25x12n

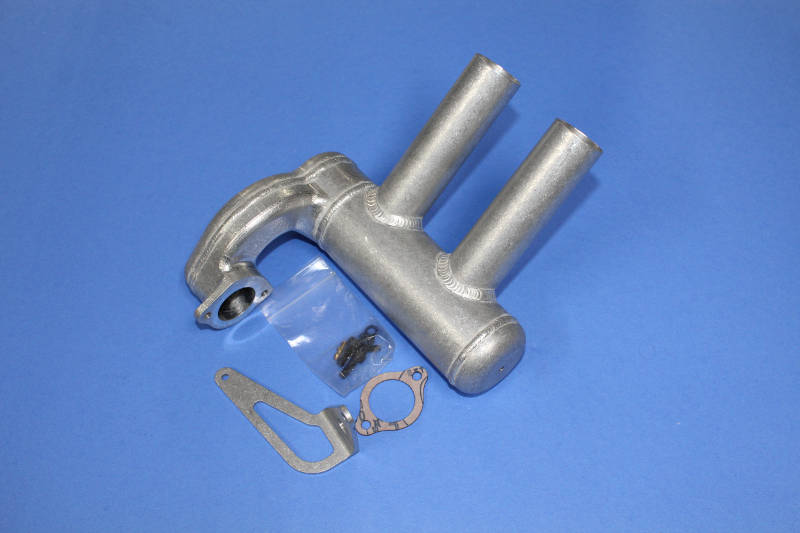

DA-85 Muffler:
$140.00

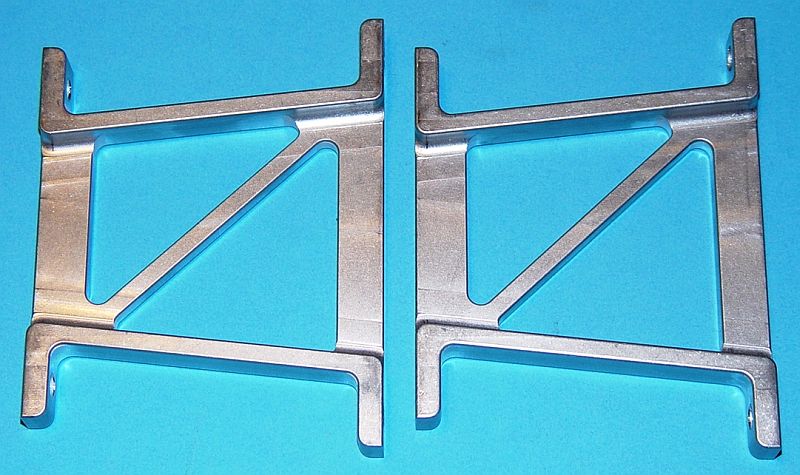

DA-85 Engine Mount
T6061 Billet aluminum
3-1/2"
$70.00

See Photo

See dimension views


Evolution 80GX (4.9) Gas Engine

For use with the Meister Scale P-47, Corsair, FW-190A and the Zero

Engine Type: 2-Stroke
Application: Airplane
Benchmark Prop: 27 x 10 Mejzlik @ 6400
Bore: 48.0mm (1.89 in)
Carb Type: Walbro
Crankshaft Threads: M10 x 1mm
Cylinder Type: Ring
Cylinders: Single

Displacement: 4.88 cu. in. (80.0 cc)
Engine (Only) Weight: 2220 g (78.3 oz)
Fuel Type: Gas
HP: 10.1HP (9Nm)
Mounting Dimensions: 204 x 90 x 161.5
Prop Range: 26x10 to 27x10
Stroke: 44mm (1.73 in)
Type: 2-stroke gasoline engine

Price: $750.00
